Mr. Steam  |  SKU: MX4R2401

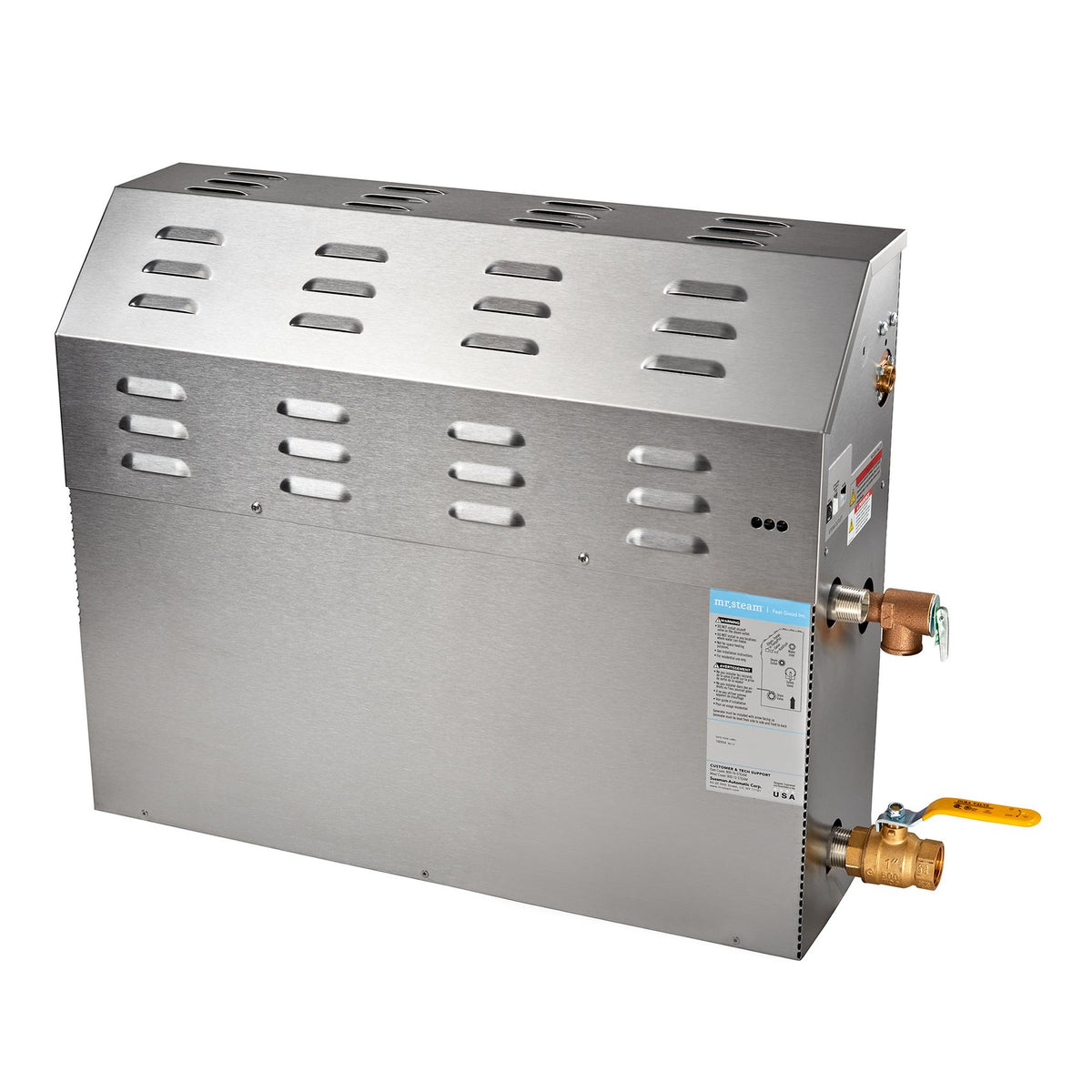

Mr. Steam MAX 20 kW Steam Shower Generator | MX4R

Authorized Dealer

Manufacturer's Warranty Included

Financing and HSA/FSA options may be available — ask us for details with your quote

Complimentary Shipping

Lifetime Warranty

Lifetime Support

For Commercial Buyers

Planning a wellness installation?

Sauna Republic partners with commercial clients on project-based installations — from single-unit boutique studios to multi-unit hotel rollouts. Dedicated project managers, direct-from-manufacturer pricing, and full commercial warranty coverage.

Hotels & Resorts Day Spas Fitness Centers Wellness Clinics Medical & PT
Pledge 1% Member
🌲 Sauna Republic gives back
We donate 1% of profits annually to the Arbor Day Foundation — helping plant trees and protect forests.
Trusted by customers across America.
See verified reviews →
Sauna Republic

Have a question? We're here to help.

Instant Live Chat: Chat Now

Call or Text us: (302) 273-0861

Frequently Asked Questions

How does a steam generator work?

The generator heats water in a stainless steel tank outside the steam room. Steam travels through insulated piping to the steam heads inside the sealed room, and the control on the wall sets the temperature and session time.

What size steam room does the MAX 20 kW cover?

Mr. Steam rates the MAX 20 kW for an adjusted room volume of 483 to 678 cubic feet. From 412 to 482 cubic feet, the MS Super 15 kW is the correct size. From 679 to 822 cubic feet, move to the MAX 24 kW.

How do I calculate my room volume?

Multiply length by width by height in feet. Then adjust for materials: add 0 percent for ceramic or porcelain tile on cement board, add 50 percent for natural stone, marble, glass block or concrete. Add 15 percent for each foot of ceiling above 8 feet, up to 10 feet. Our size calculator applies these adjustments for you.

My room is larger than 964 cubic feet. What then?

The MAX 30 kW is the largest residential Mr. Steam generator. The MAX manual covers connecting two to five MAX generators to one control with a tandem cable, each with its own power supply and plumbing. Send us your room dimensions and construction, and we confirm the sizing with Mr. Steam before quoting.

My steam room is acrylic or another synthetic material. Does that change anything?

Yes. The MAX manual gives two different deductions for acrylic or synthetic rooms, 40 percent in its sizing steps and 15 percent in its chart notes, so we confirm the size with Mr. Steam before quoting. Consult the enclosure manufacturer on steam head placement, and where the material is not heat resistant, Mr. Steam specifies its Acrylic Shield (103938RD round or 103938SQ square) at each steam head.

Why does the MAX need two steam heads?

Mr. Steam requires every MAX generator to be installed with two or more steam heads. Through a single head, too much steam leaves one point and can cause scalding. The 3/4 inch steam line runs to a tee fitting and splits into equal runs so each head receives the same amount of steam. Every control ships with one steam head, so we add a second in the same style and finish to your quote.

How is the MAX 20 kW different from the MS and MS Super series?

The MS series runs from 5 to 9 kW for rooms up to 257 cubic feet, and the MS Super series from 10 to 15 kW for rooms up to 482 cubic feet; both can be floor or wall mounted. The MAX series runs from 20 to 30 kW for rooms from 483 to 964 cubic feet, in a floor-standing cabinet 25.125 inches wide, 20.75 inches high and 7.875 inches deep, and it requires two or more steam heads.

What is Express Steam?

Express Steam is a factory-built version of the same generator with a low-power element and thermostat that keep the tank water warm between sessions, so steam reaches the room sooner. It is a separate factory-built unit, not a part added later. Choose Express Steam or Not sure in the configurator, and we quote accordingly.

How long does a steam session run?

You set the session on the control. The generator has a 60-minute electronic countdown shutdown with a 75-minute limiting safety back-up, so it cannot run unattended indefinitely.

How much water does it use?

Mr. Steam lists about 2.7 gallons of water for a 20-minute session on the MAX 20 kW.

Which control and steam head should I choose?

Every control ships with a steam head, and you choose the style in the configurator; the second head we add matches it. The iSteamX is a 7-inch touchscreen with saved user profiles. The iTempo is a compact round or square control. The TempoFlex is a wireless, rechargeable glass control. The TempoTouch is a single-button control with no display. The Aroma steam head is standard; the Linear is a 16-inch flush head that must be planned before the wall is tiled.

Can I control the steam room from my phone?

Yes, with the SteamLinx Wi-Fi module, which you can add in the configurator. We confirm it pairs with the control you choose before ordering.

Can I add lighting, music or aromatherapy?

Yes. The configurator offers ChromaTherapy lighting, MusicTherapy speakers and an AromaTherapy pump, which wire back to the generator, so decide on them before the walls are closed. Aroma oils go into the reservoir built into the steam head.

Where can the generator be installed?

Outside the steam room, indoors, in a heated and ventilated room such as a basement or heated attic, within 60 feet of insulated steam piping from the steam room. It must stand upright on a solid, level floor, and Mr. Steam states it must not be hung on a wall. It cannot go in a vanity or other small enclosed space, under the steam room bench, outdoors, or anywhere water could freeze. For service, Mr. Steam recommends 18 inches on the left side, 21 inches above, 24 inches in front and 12 inches on the plumbing side.

What electrical service does it need?

A dedicated 240V single-phase circuit drawing 84 amps, with 3 AWG copper conductors rated 90°C (Mr. Steam's planning guide lists 2 AWG), a separate breaker, and a disconnect within sight of the generator. Your licensed electrician sizes the breaker and wire to local code.

Is a 208V, three-phase or 480V version available?

Yes. The MAX 20 kW is made for 208V single phase, where it draws 97 amps, and in three-phase versions at 208V, 240V and 480V. Tell us your service when you request pricing and we quote the matching unit.

What plumbing is required?

A 3/8 inch cold water supply with a shut-off valve, a 3/4 inch steam line of insulated brass or copper from the generator to a tee fitting and on to each steam head, pitched 1/4 inch per foot toward the steam heads or the generator, and a 1 inch drain line. No valve may be installed in the steam line, and the drain and safety valve lines must not be connected together. A licensed plumber completes the work.

Where do the steam heads go?

Mr. Steam specifies 6 to 12 inches above the floor, or 6 inches above the tub edge in a tub enclosure, with the heads spaced evenly through the room. Keep each head at least 12 inches from a wall to reduce noise, away from where bathers could touch it, and where steam will not hit the door seals. Each steam pipe needs a 1.5 inch hole through the wall.

Where does the control go?

Mr. Steam controls can be mounted inside or outside the steam room. If the control is outside, Mr. Steam requires a Remote Temperature Probe (MSTS) inside the steam room, and we add it to your quote. The standard control cable is 30 feet, a 60-foot cable is available, and Mr. Steam recommends running it in a dedicated 1 inch conduit away from power lines and hot piping.

What does the steam room itself need?

Full walls, ceiling, floor and door, with a gasketed door recommended. Surfaces must be heat resistant, water resistant and non-porous, such as tile or marble. Provide a floor drain and nonslip flooring, keep heating, venting and air conditioning devices out of the room, and use double-paned tempered glass for any window. Mr. Steam recommends a ceiling no higher than 8 feet.

How is the generator maintained?

Mr. Steam recommends opening the manual drain valve fully every two months, or more often in hard water areas. The AutoFlush included on every Sauna Republic quote does this automatically about two hours after each session. Mr. Steam also recommends testing the water supply before installation.

Why does the quote include a drip pan?

Mr. Steam strongly recommends a drip pan in the unlikely event of a plumbing leak. The MAX generator stands inside the pan, which drains by gravity through a 3/4 inch fitting, so your plumber connects it to a drain according to local code.

What does the warranty cover?

Mr. Steam provides a limited lifetime warranty on residential generators installed in the United States and Canada. Claims within two years of purchase include in-home service, parts and labor; after two years, the warranty covers parts. Controls and accessories carry their own warranties. The full terms are on the Resources tab.

Is Sauna Republic an authorized Mr. Steam dealer?

Yes. Sauna Republic is an authorized Mr. Steam dealer. This matters because the Mr. Steam warranty excludes generators bought from unauthorized online sellers.

Can I use the MAX 20 kW in a commercial steam room?

No. The MAX series is for residential use only, and commercial use voids the warranty. For spas, gyms and hotels, see the Mr. Steam CT Day Spa and Mr. Steam CX commercial generators.

How does delivery work?

The generator ships as a parcel, and Mr. Steam lists a supplier lead time of 96 hours. We confirm current availability and the delivery date for your full system when we send your quote.

Can I use HSA or FSA funds?

Steam generators are not HSA or FSA eligible.

Do you offer financing?

Yes. See our financing options.

What is your return policy?

Please review our return policy, or contact us before ordering with any questions.

How do I get pricing?

Build your system in the configurator on this page, or request pricing directly. We reply with a written quote for the generator, control, both steam heads, AutoFlush and drip pan. You can also call (302) 273-0861 or email info@thesaunarepublic.com.
