Documentation for the Delta Commercial Steam Boiler Package:

• Commercial Steam Generator Spec Sheet (PDF)
• Commercial Generator Sizing Guide (PDF)
• Installation & Maintenance Manual (PDF)

Performance & Capacity

• Eight outputs from 9 kW to 48 kW, sizing rooms up to 2,000 cubic feet
• Engineered for continuous, round-the-clock commercial operation
• 360-degree steam head for fast, even steam dispersion
• Rapid recovery between back-to-back commercial sessions

Controls & Programming

• Microprocessor digital command center for management programming
• User bypass control lets clients adjust steam within a preset range
• Idle-setback scheduling, programmable individually for each day of the week
• Operates from up to 100 feet from the generator (50-foot cables standard)
• Two relays prewired for an aromatherapy pump

Electrical Options

• 208V, 240V, or 480V to match your building service
• Single-phase available up to 24 kW; three-phase across the full range
• Units 30 kW and above are three-phase only
• 480V configurations available from 12 kW up

Multi-Room & Expansion

• Runs two independent steam rooms when paired with the Second Room System
• Compatible with Delta aroma injection, blowdown valves, and generator stands
• Scales across a facility from a single back-of-house equipment room

Build & Installation

• Turnkey package: boiler, command center, user bypass control, room sensor, steam head
• Steam solenoid pre-assembled to the generator
• One-year commercial warranty for heavy commercial use

In the Package

• Delta commercial steam boiler (output, voltage, and phase confirmed at quote)
• Microprocessor digital command center (management control) with cable
• User bypass control with 50-foot cable
• Room sensor with 50-foot cable
• 360-degree steam head
• Steam solenoid, pre-assembled to the generator

Required for Operation (Not Included)

• Dedicated electrical circuit at the correct voltage and phase, installed by a licensed electrician
• Water supply line (1/2" NPT inlet) and steam line (3/4" NPT outlet)
• Drain connection for blowdown
• 90°C copper wire for the generator connection

Optional Add-Ons (Available at Quote)

• Second Room System — run two independent steam rooms from one boiler
• Aromatherapy pump and essential oils (boiler is prewired for aroma)
• Digital auto blowdown valve and blowdown tank
• Generator stand

Sizing Guide — Output to Room Volume

Measure your steam enclosure (length x width x height, in feet) to find its cubic footage, then match it to the output below. For best performance, ceiling height should not exceed 8 feet (10 feet maximum). Tell us your room dimensions and electrical service and we'll confirm the exact configuration.

OutputRoom VolumeVoltage / Phase AvailableBreaker9 kW0–400 cu ft208 / 240V · 1 or 3-phase30–60A12 kW401–500 cu ft208 / 240 / 480V · 1 or 3-phase20–80A15 kW501–620 cu ft208 / 240 / 480V · 1 or 3-phase25–90A18 kW621–740 cu ft208 / 240 / 480V · 1 or 3-phase30–100A24 kW741–1,000 cu ft208 / 240 / 480V · 1 or 3-phase40–150A30 kW1,001–1,250 cu ft208 / 240 / 480V · 3-phase45–110A36 kW1,251–1,500 cu ft208 / 240 / 480V · 3-phase60–125A48 kW1,501–2,000 cu ft240 / 480V · 3-phase80–175A

Voltage must match your local utility service. 90°C copper wire required for connection. Not sure which output fits? Tell us your room dimensions and we'll size it for you.

Dimensions & Weight

• 9–24 kW units: 21"L x 19"W x 25"H, approximately 200 lbs
• 30–48 kW units: 39"L x 22"W x 28"H, approximately 300 lbs

Electrical

• Voltage: 208V, 240V, or 480V — must match local utility
• Single-phase available up to 24 kW; three-phase available across the full range
• Units 30 kW and above require three-phase service
• 480V configurations available from 12 kW up
• 90°C copper wire required

Plumbing & Installation

• Water inlet: 1/2" NPT
• Steam outlet: 3/4" NPT
• Recommended ceiling height: 8 feet optimal, 10 feet maximum
• Generator mounts in a back-of-house equipment room up to 100 feet from the steam room

Controls & Steam Delivery

• Microprocessor digital command center with day-of-week idle-setback scheduling
• User bypass control for client-side adjustment within preset limits
• Room sensor with 50-foot cable (control cabling supports up to 100 feet)
• 360-degree steam head dispersion

Warranty

• One-year commercial parts warranty for heavy commercial use (see Safety & Warranty tab for full terms)

The Delta Commercial Steam Boiler Package is a turnkey, commercial-grade steam system engineered for continuous, all-day operation in spas, hotels, gyms, health clubs, and recovery facilities. Available in eight outputs from 9 to 48 kW, it sizes steam rooms from compact treatment suites up to 2,000 cubic feet — and a single boiler can drive a second room with the optional Second Room System.

Built for round-the-clock commercial duty

This is a purpose-built commercial line, not a residential generator pressed into business use. The boiler is designed for the demanding duty cycle of a revenue-generating facility — repeated daily sessions, fast recovery between guests, and the reliability an operator needs when the steam room is a booking driver. It carries Delta's one-year commercial warranty for heavy commercial use.

A complete, turnkey package

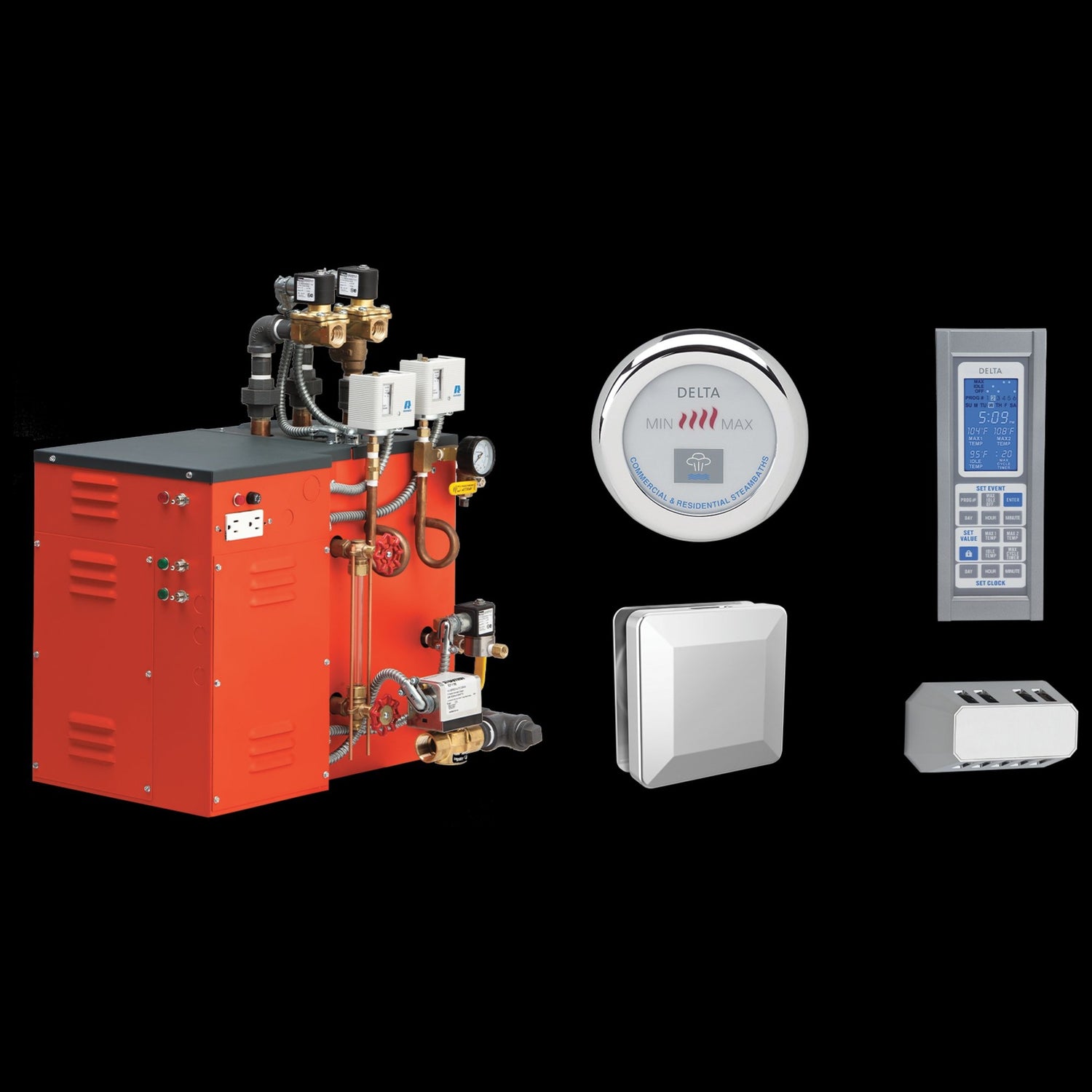

Every package ships ready to install: the boiler, a microprocessor digital command center for management, a user bypass control for clients, a room sensor, and a 360-degree steam head for even dispersion. The steam solenoid arrives pre-assembled to the generator. There is no separate parts list to chase — the working essentials are in the box.

Programmable management controls

The digital command center lets management program temperature ranges and an idle-setback schedule that can be tailored for each day of the week, holding the room ready during peak hours and conserving energy during off-peak. Clients adjust steam output within the preset range using the user bypass control. Controls operate from up to 100 feet from the generator (50-foot cables ship standard), so the boiler can live in a back-of-house equipment room.

Sized and wired to your facility

The package is offered in eight outputs from 9 to 48 kW and in 208V, 240V, or 480V, single- or three-phase, to match your building's electrical service. We size the output to your steam-room volume and confirm the voltage and phase your service supplies before anything is built — so the unit that ships is the one your space and your panel actually need.

Multi-room ready

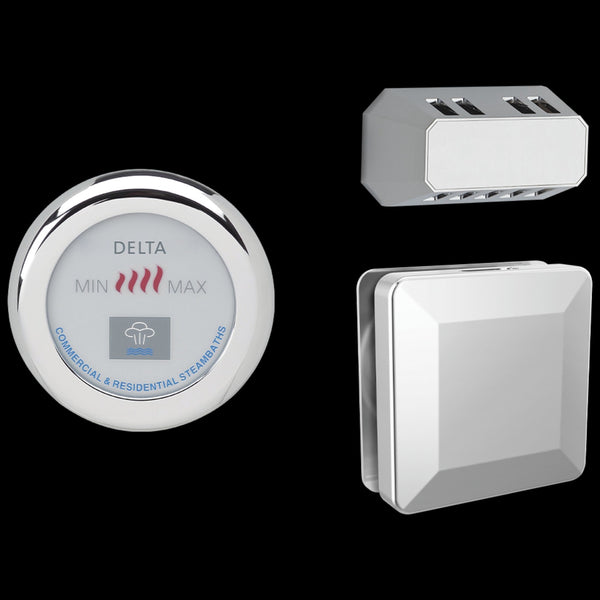

When paired with the Delta Second Room System, one commercial boiler can serve two independent steam rooms, each with its own control — an efficient configuration for facilities running men's and women's rooms or multiple treatment suites from a single equipment room.

Why buy from Sauna Republic

Sauna Republic is an authorized commercial dealer. We size the boiler to your room volume, confirm the voltage and phase your electrical service requires, and coordinate the package and any expansion components as one project with a single point of contact across steam, sauna, cold plunge, and red light. Request a quote or call our commercial team at (302) 273-0861, seven days a week.

Commercial Warranty

Delta (DFC) warrants that the parts, including electronic parts, of its steam bath generators with model numbers beginning with 5COM — which are intended solely for heavy commercial use — purchased from authorized Delta sellers and used in a commercial application will be free from defects in materials and workmanship for a period of one (1) year from the date the product is received by the original purchaser or their authorized representative. Delta will, at its option, repair or replace, free of charge, any part that proves defective in material or workmanship under normal installation, use, and service during the warranty period.

Installation & Code

• Installation must be performed by a licensed electrician and plumber in accordance with local codes
• Commercial installations are subject to your local Authority Having Jurisdiction (AHJ); requirements vary by municipality
• Where steam rooms serve the public, ADA accessibility provisions may apply to the room and bench (confirm with your designer or AHJ)
• Adequate ventilation and a proper drain are required

Returns

Commercial steam boilers are made to order. Please review our return policy for details, or contact a specialist with any questions before ordering.
