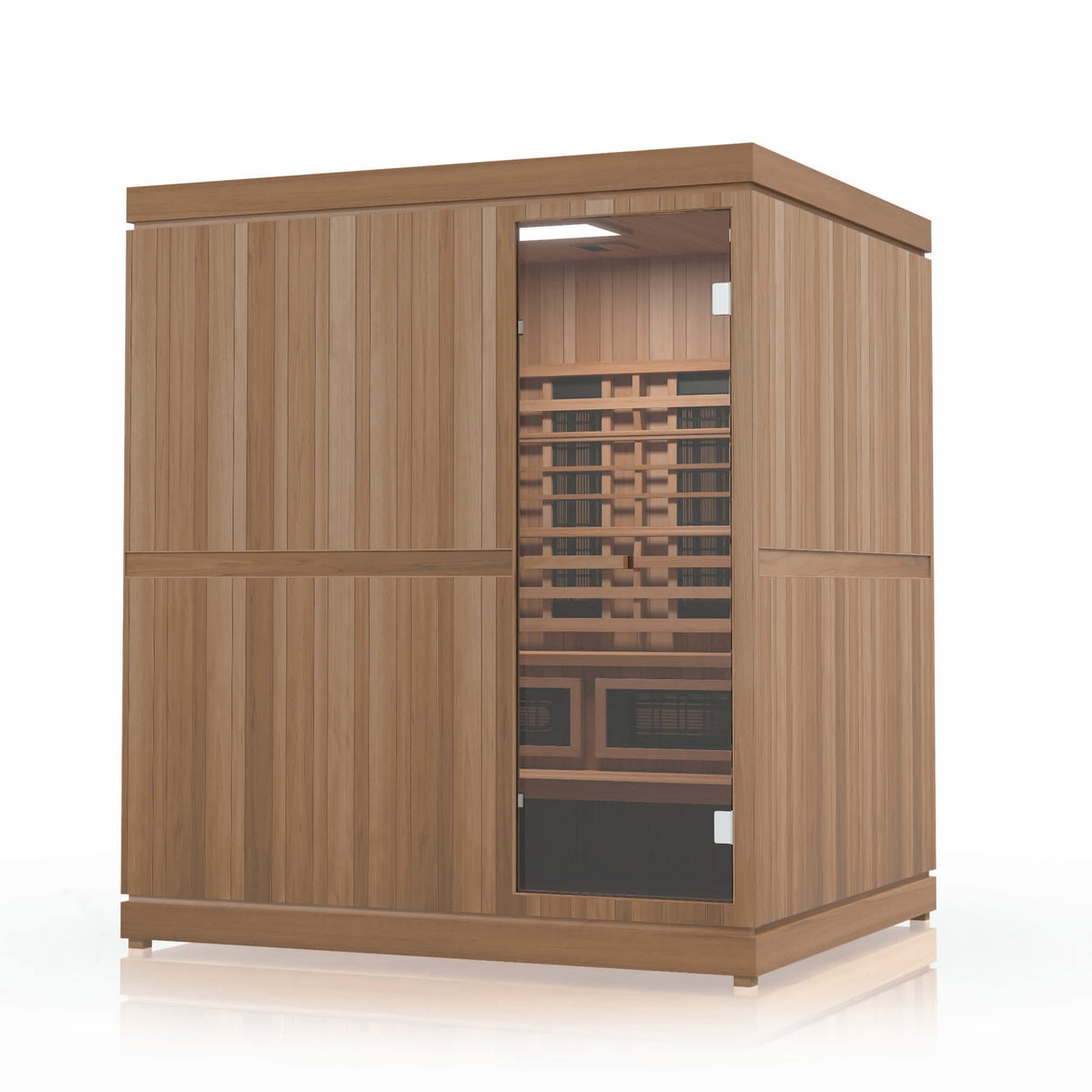

Finnmark FD-5 4-Person Trinity XL Infrared & Steam Sauna with Traditional Heater

We currently offer financing options through ShopPay.

Shipping Details for This Product

This handcrafted sauna sanctuary requires special appointment delivery due to its weight and packaging. It will be shipped on a wooden pallet with curbside delivery only, where the driver will lower the items to ground level. After order confirmation, we’ll send you a text to discuss any delivery challenges that could affect costs. Our goal is to ensure a smooth delivery process.

Shipping Rate for This Product

• Freight Cost: Free shipping to the contiguous United States. Note: Remote or complex delivery areas may not qualify for this rate.
• Freight Quote for Other Areas: Contact sales@thesaunarepublic.com for details.

Order Confirmation and Shipping Timeline

Upon placing your order, you’ll receive a confirmation email verifying we’ve received it and pre-authorized your credit card. We’ll contact our suppliers to confirm stock availability. If in stock, the item will ship within 5 business days, and tracking information will be sent within 24 hours of shipment to the email provided. If the item is unavailable or on backorder, we’ll cancel the pre-authorization and notify you via email. For inquiries, contact support@thesaunarepublic.com or call (888) 833-2305.

Cancellations (Before Shipment)

You may cancel your order free of charge before it ships, except for custom or made-to-order products. Contact us at (888) 833-2305, via live chat, or email support@thesaunarepublic.com. Custom or made-to-order products cannot be canceled or refunded, as they are built specifically for you upon ordering. If unsure whether your order is custom or made-to-order, please reach out. All sales are final for custom and made-to-order products.

Returns and Refunds

Returns are accepted only if the shipment is damaged or the product is faulty. Contact support@thesaunarepublic.com to obtain a Return Merchandise Authorization (RMA) number. Securely package the item in its original packaging and include the RMA number, proof of purchase, and photos/documentation of the damage or fault. Due to rising LTL/freight costs, returns may incur a 25% cancellation fee plus return shipping costs, depending on the manufacturer. If replacing the product, we may offset some costs based on the item.

Refunds are processed within 5 business days after the product is returned to the warehouse and inspected. We reserve the right to withhold refunds or cancel payments until the goods are received, inspected, and deemed damaged or faulty.

Damaged or Faulty Shipments

Inspect your item’s packaging and product upon arrival. If damaged or faulty, contact support@thesaunarepublic.com to initiate a return and obtain an RMA number. Include the RMA number, proof of purchase, and photos/documentation of the damage or fault with your return.

Shipping Restrictions

This product ships only to the lower 48 United States.

We are committed to delivering your sauna and accessories as quickly as possible. Our goal is to provide a seamless, "white-glove" experience from the moment you place your order to the day your sauna arrives.

While we strive for timeliness, please be aware that these estimates may be subject to change due to unforeseen industry-wide factors, such as:

• Manufacturing and supply chain delays
• Increased demand on freight and logistics networks
• Changing schedules with local delivery terminals

We understand that you're excited to receive your order, and we share that excitement. Rest assured, we are actively tracking your shipment and will notify you of any significant updates. We appreciate your patience and thank you for choosing The Sauna Republic for your wellness journey.

For any questions about your order, please contact our support team at support@thesaunarepublic.com.

Warranty

FD-5 Assembly

LCD Controller with WiFi Manual
FD-5 Diagram

EMF Test Log

UL Listing

Finnmark Certification

ETL Certification

Harvia KIP Heater Installation and Operation Manual

Harvia Suitable Sauna Stones

FD-5 Specifications

Finnmark FD-5 Trinity XL Features

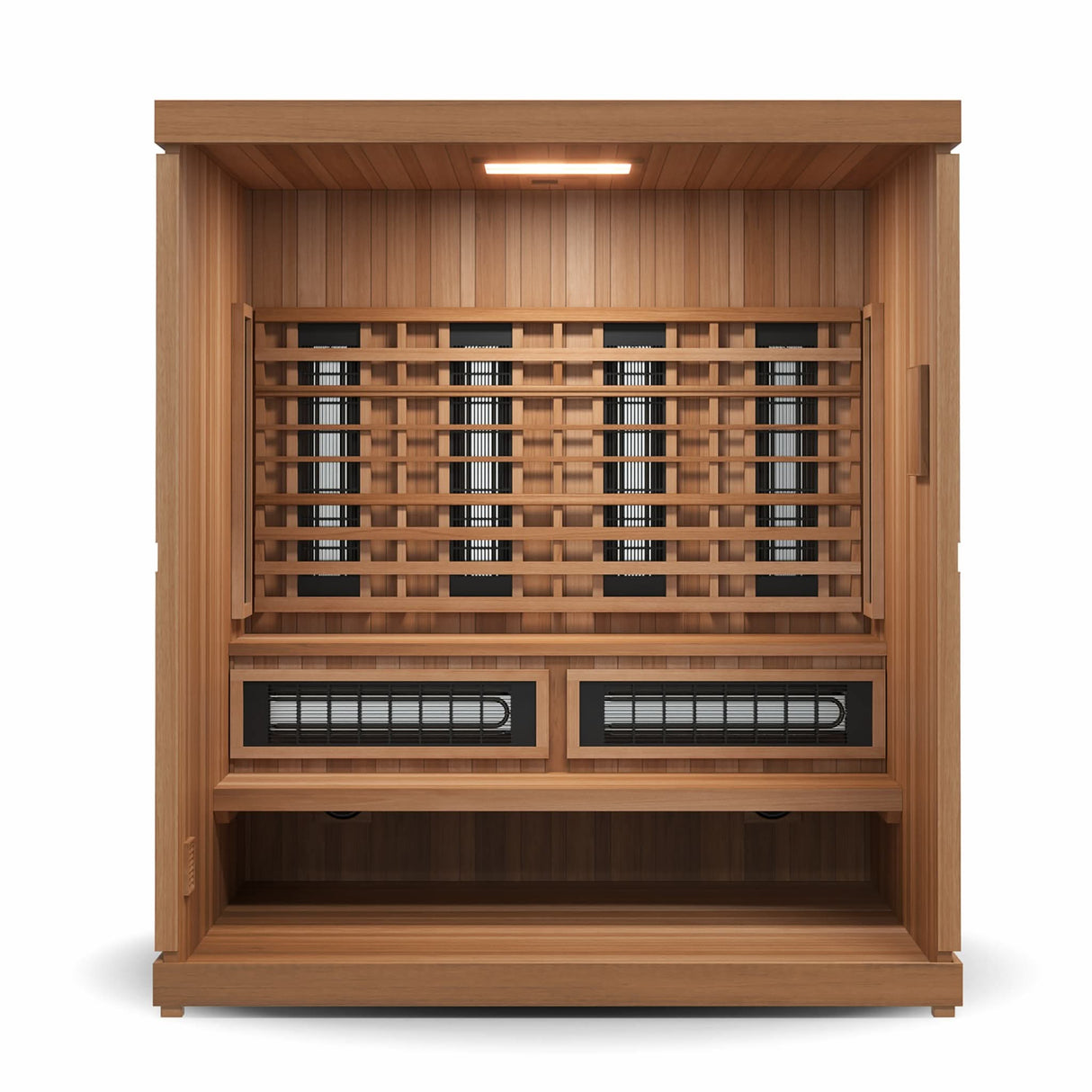

• Spectrum Plus™ UL Listed short wave infrared heaters for deep penetrating heat, up to 25x more than standard carbon panel heaters.
• Spectrum Red Light™ Therapy. 192 Diode medical grade LED panel capable of producing highly beneficial 650nm of red light therapy combined with chromotherapy for those days you need a little love.
• Antimicrobial Western Canadian cedar interior that protects against mold, bacteria and fungus.
• Thermal Plus™ Aspen exterior that will never rot, warp, decay or chip. Making FinnMark Design's full spectrum infrared saunas one of the healthiest and longest lasting saunas on the market.
• 3-IN-ONE Combination. Compromise no more. Introducing the only combination sauna with true UL listed infrared heaters combined with a traditional heater that produces high heat steam. Get all the benefits of infrared combined with traditional rocks with steam all while soaking in the benefits of a medical grade Red light therapy LED panel.
• Built-in LCD Wi-Fi touchscreen controller with bluetooth audio.
• Audio with 6" Hi-Fi speakers, 8mm tempered glass for the ultimate thermal retention.
• Extra large two-tier bench system.
• Low EMF sauna tested by a NASA award winning testing facility.
• High Emissivity infrared heaters.

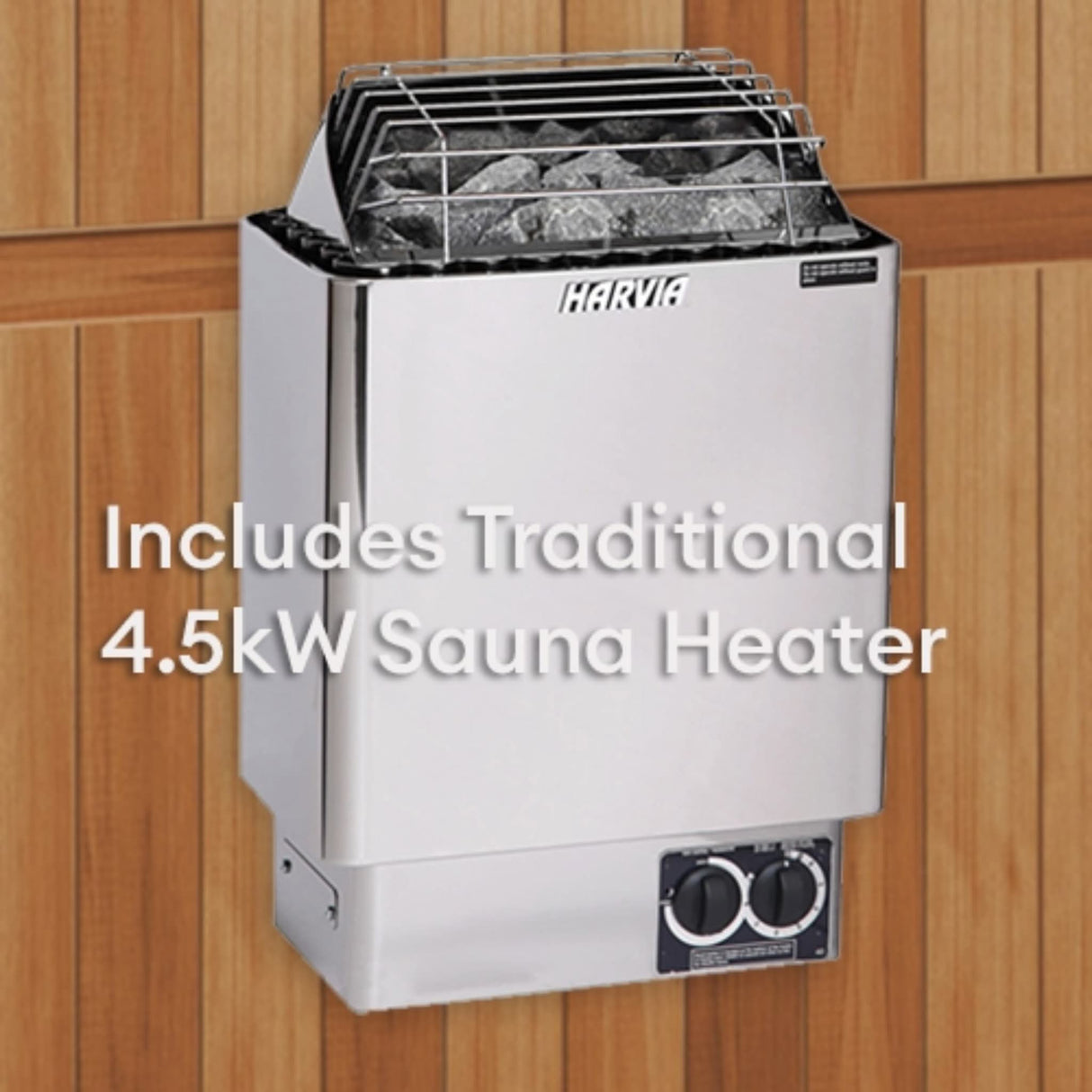

Harvia KIP Series B 4.5KW Sauna Heater

• Wall-mounted
• Stainless steel construction
• 4.5kW
• For sauna rooms from 100 to 210 cu. ft.
• Requires a minimum of 50 lbs of stones (1 box-AC3000)Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
• Built-In controls
• Available in 240V/1PH operation or 208V/3Ph operation
• Industrial grade, serviceable heating elements
• Exceptionally large rock capacity
• UL listed
• Direct rock-to-heating element contact
• Designed, engineered, and made in Finland
• Dimensions: 16"W (406mm) x 11"D (279mm) x 24"H (609mm)
• 2-Year Warranty (Consumer Use)Manufacturer's Note: Sauna heater stones are significant to the unit's safety. In order for the warranty to remain valid, the user is responsible for proper maintenance.

Finnmark FD-5 Trinity XL Package Contents

• Bottom Panel
• Top Panel
• Back Panel
• Front Panel
• Left Panel
• Right Panel
• Glass Door
• Bench Support
• Bench Top
• Heater Cable
• Floor Cable
• Screws
• Power Supply Unit
• Power Cable
• Interior Heater Connections with Wood Cover
• Door Handle (2 Screws)
• Infrared Sauna Heater Panels
• Harvia KIP Series B 4.5kW Sauna Heater
• 1 Box of the Harvia AC3000 0-10cm Sauna Stones (44 lbs)Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function (Additional freight charges will apply).
• Spectrum LED Near Infrared Ceiling Lights Combined with Medical-Grade Spectrum Red Light Therapy
• Controller 2.0, Built-In LCD Wi-Fi Touchscreen Control Panel with Bluetooth Audio
• ETL Certification
• Limited Warranty

Finnmark FD-5 Trinity XL Specifications

FD-5 Sauna Specifications

Model: FD-5

External Materials: Thermo-Aspen

Interior Materials: Western Canadian Cedar

Volts: 240

IR Watts: 2700

Amperage: 15 | TBD

Plug Type: NEMA 6-15

Maximum Temperature: IR 170° F | Traditional 190° F

Interior Dimensions: 71"W x 57.5"D x 75.5"H

Exterior Dimensions: 75"W x 64"D x 83"H

Room Volume: 130 cu. ft.

Door Dimensions: 23.625"W x 68.875"H

Door Handle Dimensions: 1.5"W x 13.25"H

Glass Thickness: 8mm W/Gasket

Product Weight: 575 lbs

Shipping Dimensions: 80"W x 40"D x 83"H

Shipping Weight: 840 lbs

Harvia KIP45B Specifications

Model: KIP45B

Kilowatt Rating: 4.5kW

Primary Fuel: Electric

Minimum Adjusted Cubic Feet: 100

Maximum Adjusted Cubic Feet: 210

Voltage: 240V

Phase: 1PH

Amperage: 18.8 Amps

Heater Weight: 40 lbs

Shipping Weight with Sauna Stones: 84 lbs

Width In Inches: 16" (406mm)

Depth In Inches: 11" (279mm)

Height In Inches: 24" (609mm)

About Finnmark FD-5 Trinity XL

The Trinity Combination Sauna is the only sauna available that combines Finnmark's UL listed Spectrum Plus infrared heaters combined with a traditional sauna heater that uses vulcanite sauna stones to radiate and even heat and allow you to splash a ladle of water onto the rocks for steam. True medical grade Spectrum Red Light™ Therapy rounds out this multi-dimensional home wellness system.

Don't compromise! Finnmark's FD-5 Trinity is the only combination sauna with true UL listed infrared heater panels together with a traditional sauna heater. Furthermore, the IR panels, red light therapy. Get all the benefits of infrared combined with traditional rocks with steam.

Get hot fast! The only IR heaters that have passed the rigorous tests from Underwriter Laboratories used in tandem with a traditional steam sauna stove. Short wave far-infrared penetrates muscles, joints, and makes you sweat 25 times more than carbon panel heaters.

The traditional 240V/1PH 4.5kW sauna heater lets you splash some water onto the rocks for a luxurious steam sauna experience. Reap the benefits and the intensity only offered by a steam sauna.

Red light therapy is a type of phototherapy that uses low-level light wavelengths to penetrate the skin and stimulate the production of collagen and other proteins, which can lead to numerous potential health benefits. It's a perfect enhancement to your sauna wellness ritual.

Traditional Sauna Heater Included.
